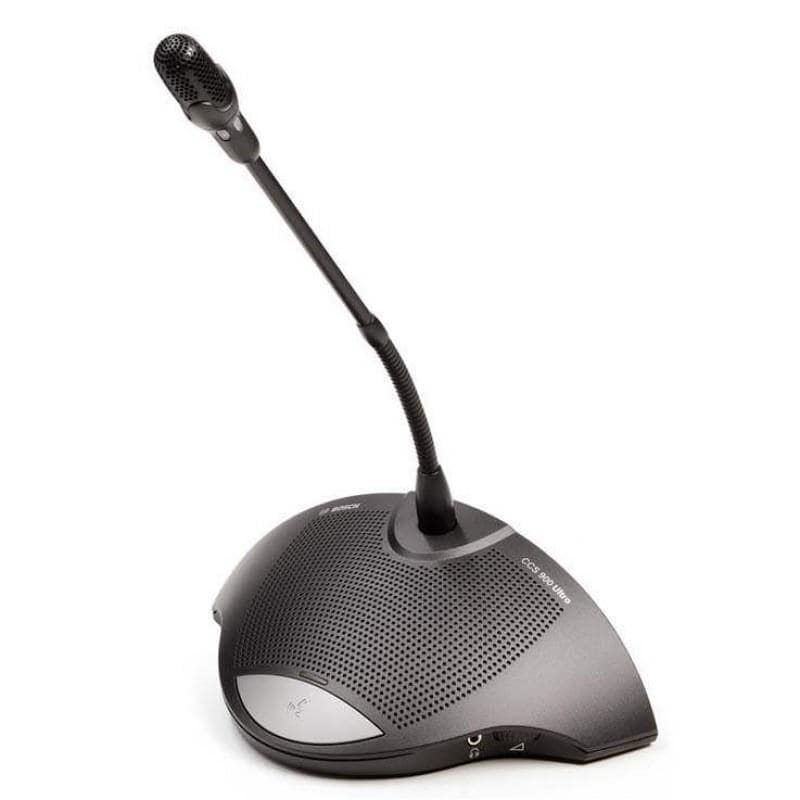

Microphone Conference Bosch CCS 900S Ultro Chairman Unit (CCS-CM-ID)
RP. 7,678,000
- Built-in loudspeaker
- Microphone
- Two 3.5 mm (0.14 in) stereo headphone sockets
Controls and indicators
- Microphone with red illuminated indicator ring, lights when the microphone is ON.
- Two 3.5 mm stereo headphone sockets, one at each side, for headphone or recorder connection.
- Built-in loudspeaker, automatically muted when the microphone is ON.
- 7-pole circular female socket for loopthrough connection to the next unit.
- 2,5 m flying lead connection cable with sturdy moulded 7-pole circular male connector for connection to the previous unit or CU.
- Rotary volume control for headphones only
- Microphone ON/OFF push-button.
Interconnection
- 2,5 m (98.4 in) cable terminated in a moulded 7-pole circular connector for connection to delegate unit or CPSU
- 7-pole circular female socket for loop-through connection to delegate units
- Two 3.5 mm (0.14 in) stereo headphone sockets
| Mounting | Table-top (portable or fixed mounting) |
| Dimensions (H x W X D) | 71 x 220 x 140 mm (2.8 x 8.66 x 5.51 in) (without microphone). Height is 132 mm (5.2 in) with microphone in horizontal position |
| Length of microphone from mounting surface | 390 mm (15.3 in) |
| Weight | 1 kg (2.2 lb) |
| Colour (top and base) | charcoal (PH 10736) |
Delegate Unit c/w 2,5m Cables
