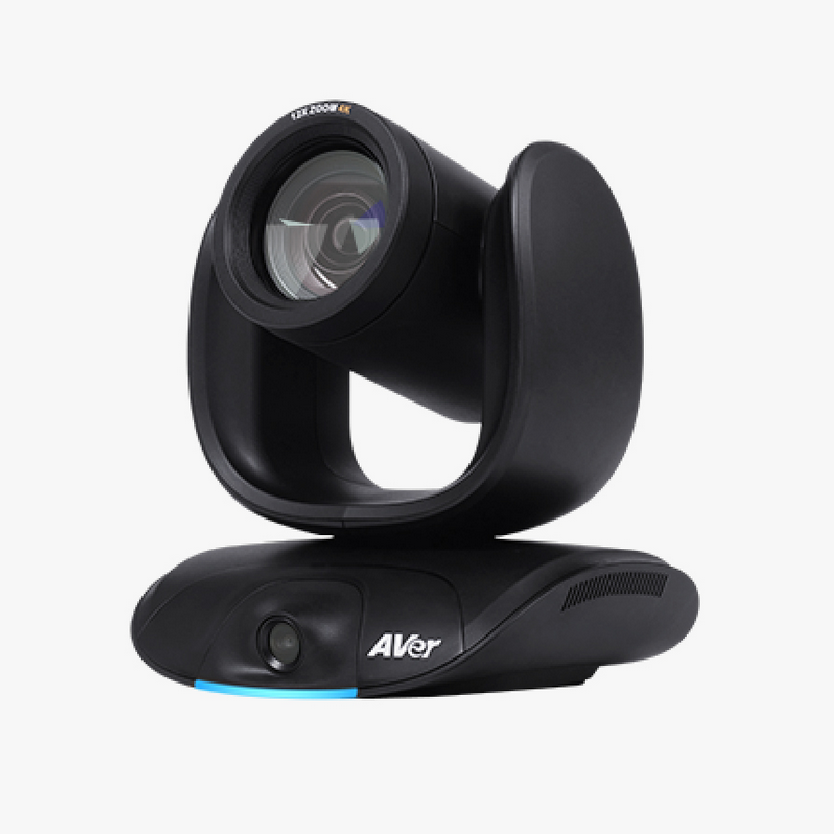

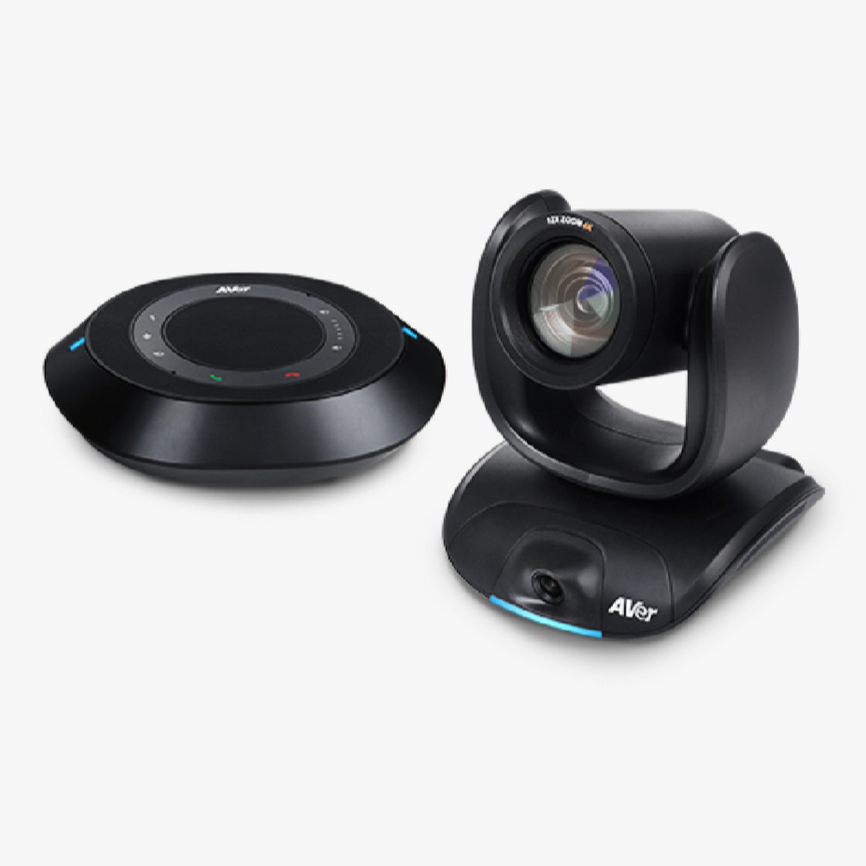

Dual Lens Camera (CAM550)

PTZ optical zoom lens

• Image sensor: Sony 4K EXMOR, crystal clear in any lighting
• Frame rates: (16:9) 4K 30fps; 1920 x 1080, 1600 x 900, 1280 x 720, 960 x 540, 848 x 480, 800 x 448, 640 x 360, at 60, 30, 15fps; (4:3) 1280 x 960, 800 x 600, 640 x 480 at 60, 30, 15fps
• 24*X Zoom: 12X optical; 2X digital zoom
• Wide field of view: DFOV 85°; HFOV 76°; VFOV 46°
• Lens focal length: 3.9mm (wide) ~ 47.3mm (tele)
• Lens F#: 1.8 (wide) ~ 2.8 (tele)
• AE, white balance: auto, manual override via PTZApp 2
• Minimum focus distance: 1.5m
• Motorized Pan & tilt: Pan: ±170°;Tilt: +90° (up) -30° (down)
• Preset number: 10 via IR remote, 128 via RS232

Secondary fixed lens (AI lens)

• Image sensor: Sony 4K EXMOR
• Frame rates and resolution set according to PTZ lens settings
• Wide field of view: DFOV 95°; HFOV 78°; VFOV 50°

Speakerphone

• Wireless Bluetooth / USB Wired for PC
• Full duplex microphone array speakerphone
• Two omnidirectional microphones support 360° pickup
• Full duplex echo cancellation
• Advanced noise suppression
• Powerful wideband voice processing
• Speaker volume: adjustable to 90 dB SPL at 0.5 m
• 3.5 mm line-in (aux) cable connects BYOD smartphones or PCs to use as speakerphones
• Touch controls for volume adjustment, mute, phone input, call, and hang up
• Can bridge phone-in and USB into one call
• Kensington lock

HDMI & PoE

• HDMI 1.3: 1080p 30fps/ 60fps
• PoE+: 802.3at

Video Format

• YUV, YUY2, MJPEG
• Network video compression format: H.264, H.265
• Network protocol: RTSP, RTMP

USB

• 3.1 Gen 1, backward compatible with USB 2.0
• UVC 1.1 (USB video), UVC1.5*

Control

Camera

• IR remote control
• VISCA/pelco P/pelco D via RS232 (128 preset points via VISCA command)
•  Remote side: VISCA over IP, IP (RJ45)
• UVC plug and play
• WebUI: Browser IP access via Chrome (Not support IE)
• OSD setting: HDMI out to TV monitor
• PTZApp 2 Support

Speakerphone

• UAC, plug and play
• WebUI: Browser IP access via Chrome (Not support IE)
• PTZApp 2 Support

Power Supply

           Camera

• AC 100V–240V, 50/60 Hz; Consumption: 12V, 2A
• PoE+: 802.3at

Speakerphone

• AC 100V to 240V, 50/60 Hz
• Consumption: 12V, 5A

Dimensions

• Package dimensions: 348(L)*251(W)*308(H) mm
• Package weight: 7.9kg
• Camera: 170.8(L) x 190.5 (H) x 173(D) mm/ 2.1kg
• Speakerphone: 220(L)x 49.5(D) x 181.5(H) mm/ 0.8kg
• Remote control: 200 x 50 x 21 mm/ 90g

Connectivity

Camera

• USB type-B 3.1 connector, backward compatible with USB 2.0
• 12V/2A DC jack power adapter
• Mini DIN9 for RS232 in & out connection (VISCA control panel and camera daisy-chain)
• IP (RJ45)
• HDMI

Speakerphone

• USB2.0 Micro USB connector
• 12V/5A DC jack power adapter
• LAN for IP remote access
• Expansion port (daisy-chain speakerphone or microphone)
• 3.5 mm phone-in jack
• 3.5 mm line out

Software Tools

• Kensington lock
• 1/4'tripod mounting screw
• Camera wall-mount bracket included
• Optional foldable TV mount

System Requirements

• Windows® 7/10/11
• MacOS X 10.14 or later
• Chromebox 3 version 94.0.4606.114 or later

Hardware Specs

• 3.2 GHz Intel® Core™ i5-4460 processor
• 4 GB RAM or more
• USB 3.1 port, backward compatible with USB 2.0

Compatible Applications

• Zoom, Microsoft® Teams, Skype, Skype for Business, Google Meet, RingCentral, BlueJeans , Intel® Unite™, Fuze, Adobe® Connect™, CyberLink U Meeting®, Cisco WebEx® GoToMeeting™, LiveOn, Microsoft® Lync™, TrueConf, V-Cube, Vidyo, vMix, WebRTC, Wirecast, XSplit
