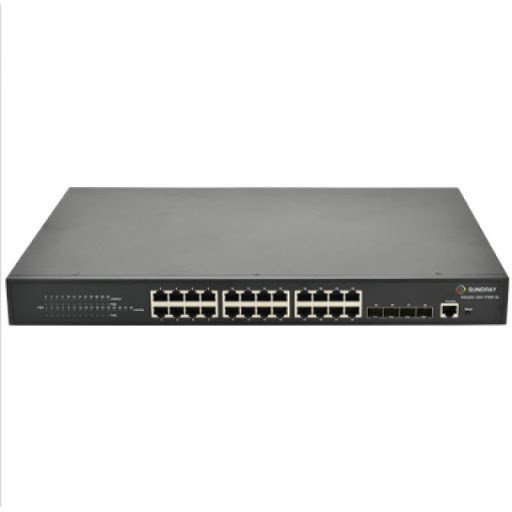

Sundray POE Switch RS5300-28X-PWR-SI
RP. 34,626,167
- The machine provides 24 Gigabit POE electrical ports and 4 10G SFP+ 10 Gigabit optical ports;
- Support 802.3af/at power supply standard, the maximum output of a single port is 30W, and the maximum output of the whole machine is 370W;
- Support fat and thin mode switching, zero configuration online management in thin mode, realize plug and play;
- Support wireless AC centralized configuration management, including port information, VLAN, port switch, etc.;
- Support visual status check, including switch load, forwarding load, online status, switch status;
- Support Voice Vlan function, can access IP telephone equipment, unify telephone network and computer network into a whole
- With security features, support linkage with wireless network equipment and security equipment to achieve safer network management and control;
- To meet the needs of large-scale networking, suitable for large-scale campus network, enterprise network, IP metropolitan area network construction access equipment;
| model | RS5300-28X-PWR-SI | Applicable scene | Enterprise network, campus network, metropolitan area network |
| Number of interfaces | 24* Gigabit electrical port; | Other interface | 1*CONSOLE port |
| 4*10G SFP+ optical port | |||
| POE power supply standard | POE/POE+ remote power supply | POE output power | Maximum 370W |
| Exchange capacity | 336Gbps/3.36Tbps | Packet forwarding rate | 108Mpps/126Mpps |
| Spanning tree | STP, RSTP, MSTP protocols | Routing function | Support IPv4/IPv6 static routing; |
| Support RIPv1/2, OSPF and other IPv4 dynamic routing; | |||
| Support IPv4 policy routing; | |||
| ARP table≧512 | |||
| Multicast | Support IGMP v1/v2/v3 snooping; | VLAN | 4K |
| Multicast entry ≧1K ; | |||
| Access method | Fat and thin one (support switching) | Online method | Layer 2 broadcast/static IP address/DHCP Option43/DNS domain name |
| Access security | Support DHCP Relay, DHCP Server; | reliability | Support VRRP, BFD for VRRP; |
| Support DHCP Snooping; | Support BFD for RIP/OSFP/static routing/policy routing; | ||
| Support Portal authentication; | Support Smartlink (backup link); | ||
| Support 802.1X authentication; | Support Monitor-link (uplink monitoring) | ||
| Support blacklist and white name | |||
| MAC | 16K, support automatic learning, filtering, learning limit | Security features | Anti-ARP spoofing, port protection/isolation, anti-DOS/ARP attack, CPU protection |
| Port aggregation | 64, support manual, static LACP | Virtualization | Support vUnit (stacking technology, virtualize multiple devices into one) |
| Support M-LAG, cross-device link aggregation, paired devices have independent control plane | |||
| Network management | APP remote management, NAT remote management | Switch portrait | Support visual inspection |
| power supply | 100～240V AC, 50/60Hz | Lightning protection level | Built-in lightning protection, 9KV |
| Safety | FCC, CE, RoHS | EEE | Energy-saving technology supporting IEEE 802.3az standard |
| Operating temperature | -5℃～50℃ | storage temperature | -40℃～70℃ |
| Working humidity | 5%～90% RH (no condensation) | physical dimension | 440mm x 330mm x 44.5mm |
|
Unit Termasuk |
Unit Utama |
