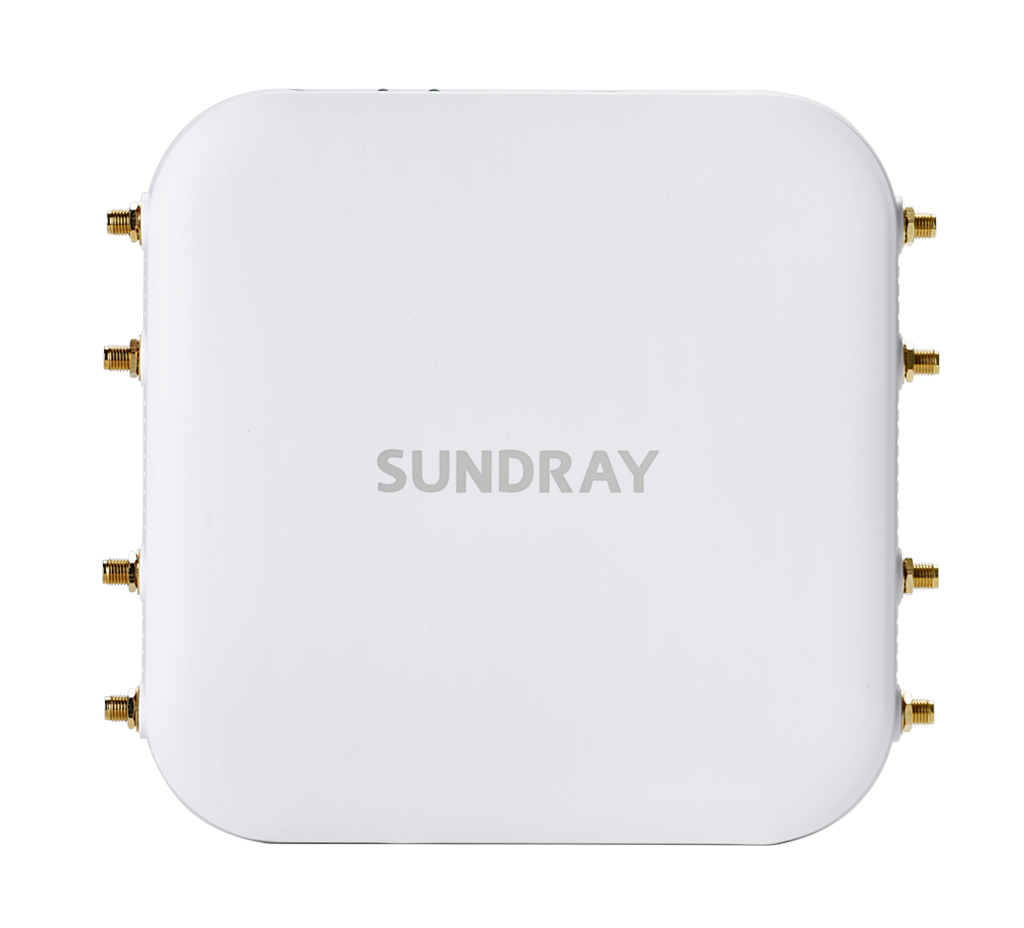

Sundray Access Point S550
RP. 11,176,400
- Indoor 11ac power dividing AP
- uplink GE port
- maximum 1167Mbps
- support dual band with 2.4G and 5.8G
- support 8 SMA interface
- each support dual band
- support cover 8 rooms with one AP
| Port No. | 1*10/100/1000 Mbps Ethernet port | |
| 8*RP-SMA | ||
| Data Transfer | 1166Mbps | |
| Working band | ||
| 802.11b/g/n : | ||
| 2.4GHz~2.483GHz | ||
| 802.11ac/n/a : | ||
| 5.15GHz~5.35GHz | ||
| 5.725GHz~5.850GHz | ||
| Basic Capacity | FAT & FIT mode | |
| 8*RP-SMA antenna | ||
| Maximum connection：256(depends on the environment) | ||
| Virtual AP：32 | ||
| Output Power：≤20dBm | ||
| Adjustable granularity：1dBm | ||
| Support SSID Hiding | ||
| Balanced load based on user/traffic/band | ||
| Speed limit based on STA/SSID/AP | ||
| Link integrity detection. | ||
| Size/mm | 170 x 170 x 40 | |
| Weight | 0.45kg | |
| Power consumption | <13W | |
| Ingress protection | IP 41 | |
| Power supply | Local power supply: | |
| DC 12V/1.5A | ||
| POE power supply: | ||
| 802.3af/802.3at | ||
| Working/Storage Tempreture | -10℃～55℃ | |
| -40℃～70℃ | ||
| Working/Storage Humidty | 5%～95%(uncondensed) | |
| Wireless Specification | Support 802.11a/b/g/n/ac | |
| Support DHCP/PPPOE dial | ||
| Support VPN | ||
| Support IPV6 | ||
| Support VLAN grouping | ||
| L2/L3 roaming | ||
| Support relay network bridge | ||
| Support channel/power adjusting automatically | ||
| Support TKIP and AES (CCMP) | ||
| Support black/white list. | ||
| Connection method | L2/L3 broadcast discovery | |
| DHCP option 43 | ||
| DNS domain name discovery | ||
| Search for controller IP dynamically through webAgent Technology. |
|
Unit Termasuk |
Unit Utama |
