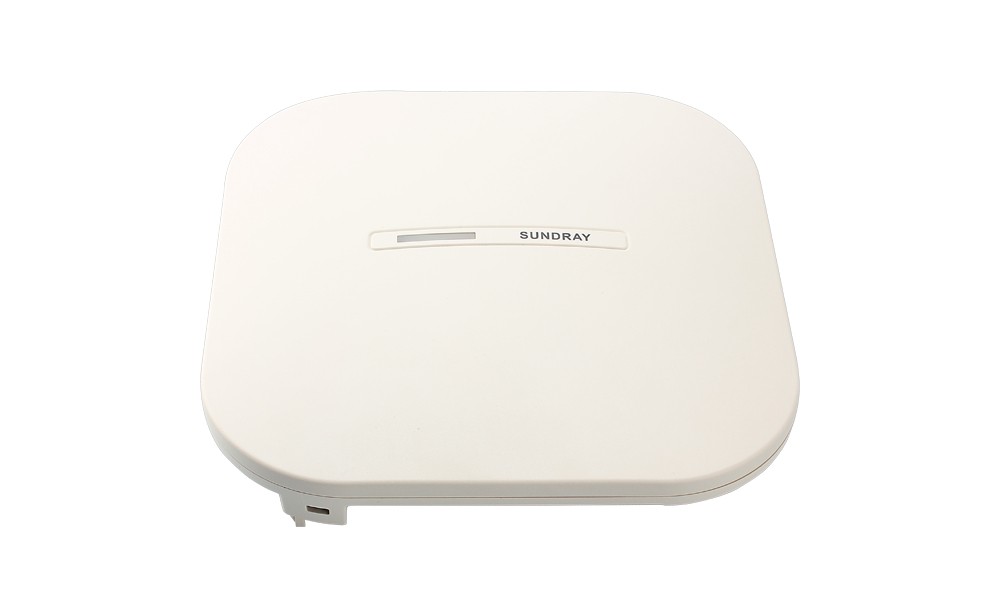

Sundray Access Point S172
RP. 8,091,000
- Indoor AP
- supports 802.11a/b/g/n/ac/wave2 and supports 2.4G and 5G simultaneously. Maximum access rate is 1167Mbps
- supports wired and 4G SIM Card uplink
- and supports 4 downlink wired network ports
- only supports DC power supply.
| Port No. | 1*10/100 Mbps WAN port |
| 4*10/100 Mbps LAN ports | |
| 1*NANO SIM interface | |
| Data Transfer | 1167Mbps |
| Working Band | |
| 802.11b/g/n : | |
| 2.4GHz~2.483GHz | |
| 802.11ac/n/a : | |
| 5.15GHz~5.35GHz | |
| 5.725GHz~5.850GHz | |
| Support 802.11ac WAVE2.0 | |
| Basic Capacity | Fat & Fit mode |
| 2*2MIMO(Embedded) | |
| Maximum connection：256 | |
| (depends on the environment) | |
| Virtual AP：32 | |
| Output Power：≤20dBm | |
| Adjustable granularity：1dBm | |
| Support SSID Hiding | |
| Balanced load based on user/traffic/band | |
| Speed limit based on STA/SSID/AP | |
| Link integrity detection | |
| Support full netcom, support 2G/3G/4G. | |
| Size/mm | 160 x 105 x 27 |
| Weight | 0.3kg |
| Power consumption | -- |
| Ingress protection | IP 41 |
| Power supply | Local power supply |
| DC 12V/1A | |
| Working/Storage Tempreture | 0℃～40℃ |
| -40℃～70℃ | |
| Working/Storage Humidty | 5%～95%(uncondensed) |
| Wireless Specification | Support 802.11a/b/g/n/ac/ac wave 2 |
| Support DHCP/PPPOE dial | |
| Support VPN | |
| Support IPV6 | |
| Support VLAN grouping | |
| L2/L3 roaming | |
| Support relay network bridge | |
| Support channel/power adjusting automatically | |
| Support TKIP and AES (CCMP) | |
| Support black/white list. | |
| Connection method | L2/L3 broadcast discovery |
| DHCP option 43 | |
| DNS domain name discovery | |
| Search for controller IP dynamically through webAgent Technology. |
|
Unit Termasuk |
Unit Utama |
