Camera

• 4K optical lens, 120° FOV, up to 5X zoom via ePTZ*
• Sony 4K sensor: ultra-crystal-clear image in any lighting
• Frame rates: (16:9) 4K 30fps ; 1920 x 1080, 1600 x 900, 1280 x 720, 960 x 540, 848 x 480, 800 x 448, 640 x 360, at 60, 30, 15fps; (4:3) 1280 x 960, 800 x 600, 640 x 480 at 60, 30, 15fps
• Intelligent fill light: automatically adjusts lighting levels to make you look energetic in a dim environment**
• SmartFrame: automatically adjusts FOV (auto focus) to track and fit all participants onscreen
• Innovative Preset Framing: Follows the presenter through preset areas
• True WDR up to 120db: 3D noise-reduction and superb backlight compensation optimize lighting in high-contrast conditions
• Mirror, flip, AE, white balance: auto/manual override via Room Management (PTZApp 2)
• Minimum focus distance: 60 cm
• People-counting API: enterprises and third-party software providers can obtain people-counting data for better understanding of meeting-space usage
• 10 camera presets (through remote control and IP web page)
• Standard tripod screw holes

Microphone

• 2 omnidirectional microphones
• Frequency response: 100–12K Hz
• Sensitivity: -37 dB
• Echo cancellation and background noise suppression

Connectivity

• USB type-C 3.1 connector, backward compatible with USB 2.0
• DC jack for power adapter (for USB 2.0 connection while using fill-light function)

Video Format

• YUV, YUY2, MJPEG
• H.264 (UVC 1.5)

USB

• 3.1 Gen 1, backward compatible with USB 2.0
• UVC 1.1 (USB video), UAC 1.0 (USB audio), UVC1.5*

Control

• IR remote control
• UVC/UVA plug-and-play
• Room Management (PTZApp 2)

Security and Mount

• Built-in TV clip
• Kensington slot
• 1/4' tripod mounting screw

System Requirements

• Windows® 7/10/11
• MacOS X 10.14 or later
• Chromebox 3 version 94.0.4606.114 or later

Hardware Specs

• 3.2 GHz Intel® Core™ i5-4460 processor
• 4 GB RAM or more
• USB 3.1 port, backward compatible with USB 2.0

Power Supply

• AC 100V–240V, 50/60 Hz
• 5V/2A

Software Tools

• EZManager 2 : Supports Windows® 7 or later
• Room Management (PTZApp 2) : Supports Windows® 7 or later, macOS® 11.6 or later
• EZLive : Supports Windows® 7 or later

Environmental Data

• Operation temperature: 0 ~40°C
• Operation humidity: 20% ~80%
• Storage temperature: -20 ~60°C
• Storage humidity: 20% ~80%

Dimension

• Package dimensions: 217(L)*155(W)*118(H) mm
• Package weight: 0.729 kg
• Camera: 160 (L) x 37 (H) x 60 (D) mm/ 0.282kg
• Remote control: 149.72 x 42.3 x 19.29 mm/50g (optional item)

Package Contents

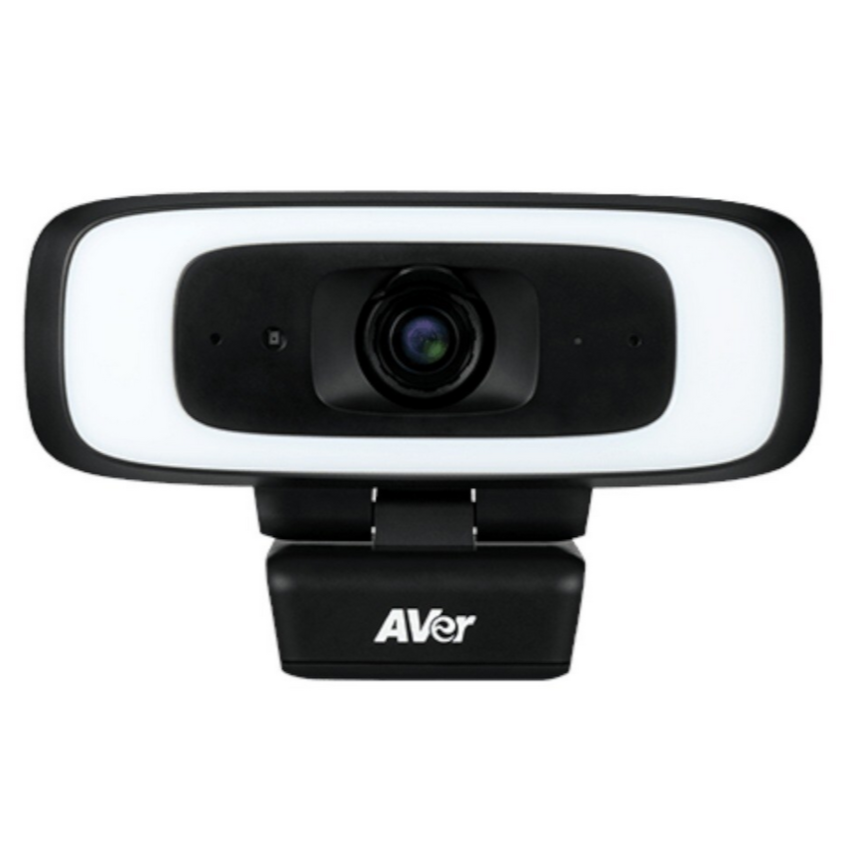

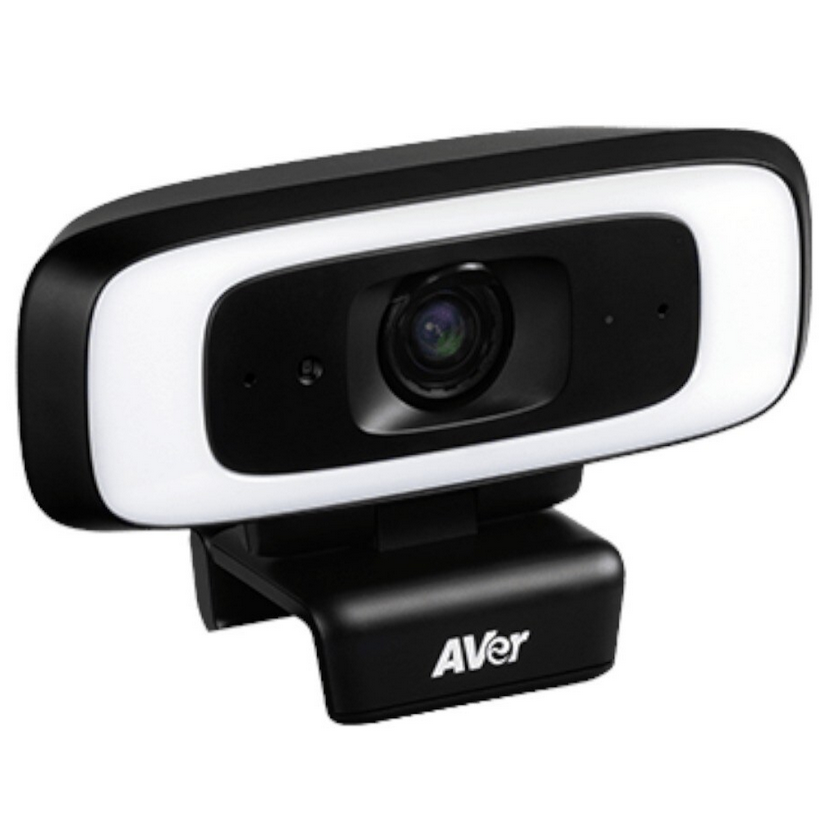

• CAM130 unit
• Power adapter (10 ft/3 m)
• USB 3.1 type-C to type-A cable (6 ft/1.8 m)
• QR code card
• Tripod screw

Optional Accessories

• Remote control (also compatible with VB130)
• USB 2.0 type-C to type-A cable (15 ft/5 m)
• USB 3.1 Extension Cable (10 m/20 m/30 m)

Compatible Applications

• ZOOM, Microsoft® Teams, Skype for Business, Skype™, Google Hangouts, Intel® Unite™, RingCentral, BlueJeans, V-Cube, LiveOn, CyberLink U Meeting®, TrueConf, Adobe Connect, Cisco WebEx®, Fuze, GoToMeeting™, Microsoft® Lync™, Vidyo, vMix, WebRTC, Wirecast, XSplit
