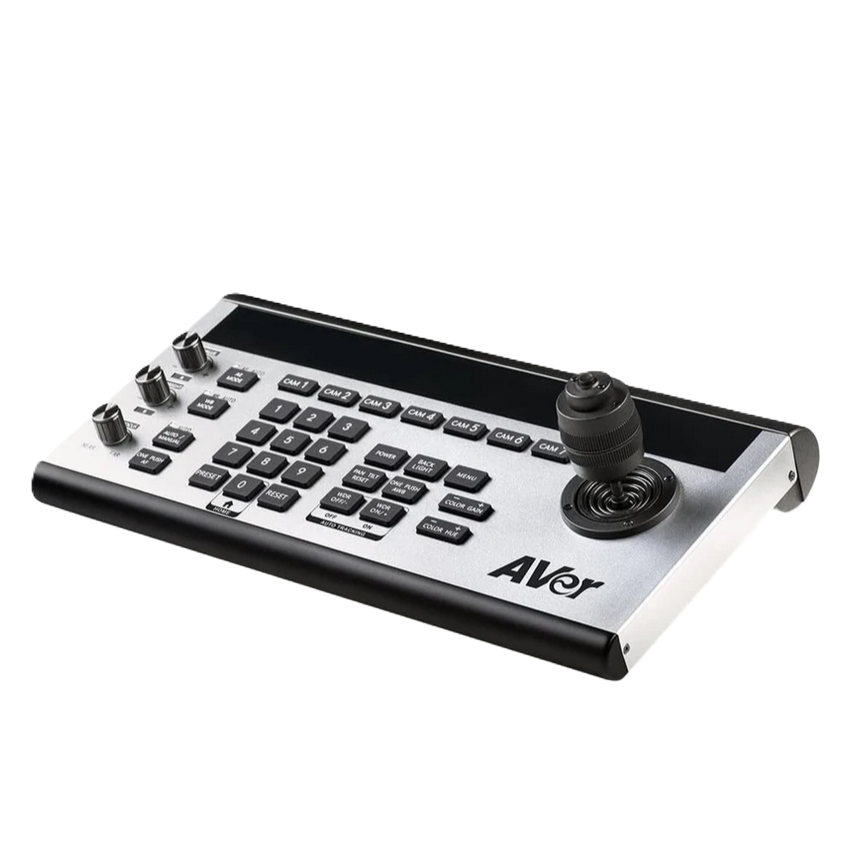

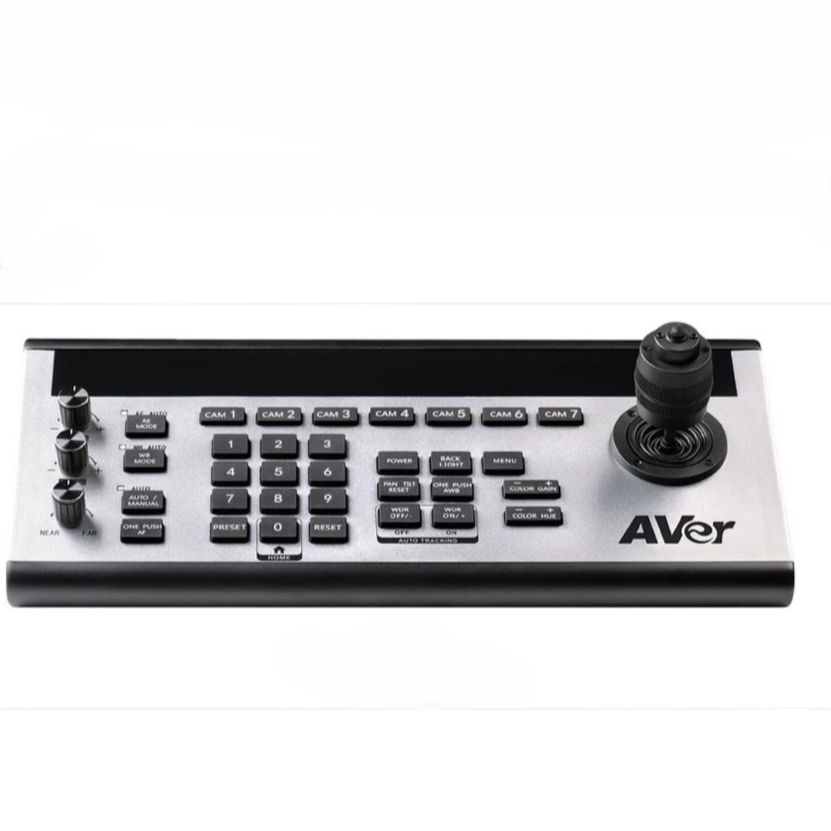

Aver CL01
RP. 28,027,500
Camera Control
IP Address
Default: 192.168.1.162 /163 /164 /165 /166 /167 /168(from Cam 1 to Cam 7)
UDP Port
08090
Cam ID
1 to 7 and more (255* max.)
Control Protocol
VISCA, SONY VISCA , Pelco D/P, UDP, IP (VISCA over IP)
System
Operating Temperature : 0°C ~ 40°C (32°F ~ 104°F)
Dimensions : 173 mm (W) x 99 mm (H) x 350 mm (D)
Net Weight : 2.5 kg
Power Source : DC 12V/2A
AC 100 – 240V
Power Consumption : 24 W
Application : Indoor
Warranty : 3 years
Package Content : User manual
4-pin RS485 terminal
power adapter
|
Camera Control |
|
|
Cam ID |
|
|
Control Protocol |
|
|
System |
AC 100 – 240V
|
Type : CL01
Warranty : 3 Years
