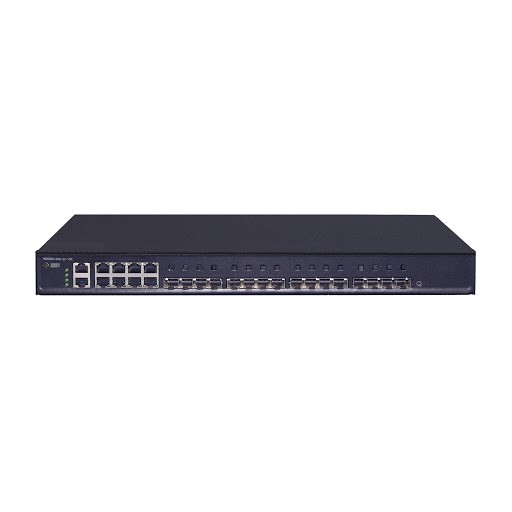

Sundray Smart Switch RS6300-24X-LI-15X -

Sundray Smart Switch RS6300-24X-LI-15X

RP. 54,510,500

The machine provides 15 10 Gigabit SFP+ optical ports, 8 Gigabit electrical ports, and 1 Gigabit optical port;
Support fat and thin mode switching, zero configuration online management in thin mode, realize plug and play;
Support wireless AC centralized configuration management, including port information, VLAN, port switch, etc.;
Support visual status check, including switch load, forwarding load, online status, switch status;
With security features, support linkage with wireless network equipment and security equipment to achieve safer network management and control;
To meet the needs of large-scale networking, suitable for large-scale campus network, enterprise network, IP metropolitan area network construction access equipment;

Deskripsi
Informasi Tambahan

model	RS6300-24X-LI-15X	Applicable scene	Data center, hyper-converged
Number of interfaces	15*10 Gigabit SFP+ optical port;	Other interface	1*CONSOLE port;
	1* Gigabit SFP optical port;		1*MANAGE mouth;
	8* Gigabit electrical port.		1*USB2.0 port.
Exchange capacity	1.28Tbps/12.8Tbps	Packet forwarding rate	420Mpps
Access method	Fat and thin one (support switching)	Online method	Layer 2 broadcast/static IP address/DHCP Option43/DNS domain name
Spanning tree	STP, RSTP, MSTP protocols	Routing function	Support IPv4/IPv6 static routing;
			Support RIPv1/2, OSPF and other IPv4 dynamic routing;
			Support IPv4 policy routing;
			ARP table ≥ 4K
Multicast	Support IGMP v1/v2/v3 snooping	VLAN	4K
Mirror	Support port mirroring	Flow Control	Support ACL, QoS
Access security	Support DHCP Relay, DHCP Server;	reliability	Support VRRP, BFD for VRR P;
	Support DHCP Snooping;		Support BFD for RIP/OSFP/static routing/policy routing;
	Support Portal authentication;		Support Smartlink (backup link);
	Support 802.1X authentication;		Support Monitor-link (uplink monitoring)
	Support blacklist and whitelist
MAC	32K, support automatic learning, filtering, learning limit	Security features	Anti-ARP spoofing, administrator hierarchical management, port protection/isolation, anti-DOS/ARP attack, CPU protection, border terminal security management
Port aggregation	128, support manual, static LACP	M-LAG	Support M-LAG, cross-device link aggregation, paired devices have independent control plane
Network management	APP remote management, remote management across WAN/NAT	Switch portrait	Support visual viewing
power supply	Dual power module design (non-hot swap)	Maximum power consumption of the whole machine	≦40W
Safety	FCC, CE, RoHS	EEE	Energy-saving technology supporting IEEE 802.3az standard
Operating temperature	-5℃～45℃	storage temperature	-40℃～70℃
Working humidity	5%～90% RH (no condensation)	physical dimension	440mm x 280mm x 44mm
