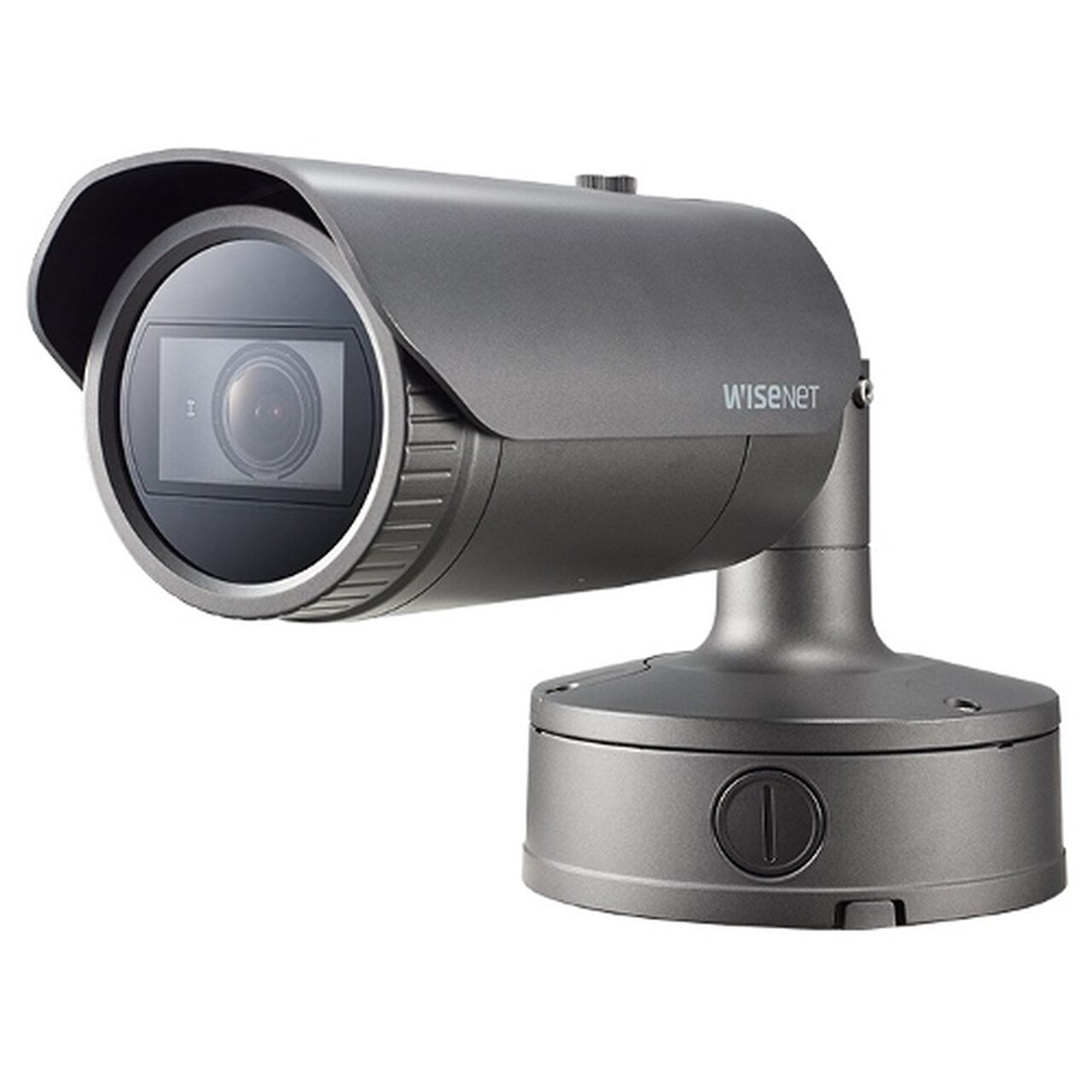

Wisenet X Series XNO-6085R
RP. 24,420,000
- Max 2MP @ 60fps
- Motorized vari-focal 4.1~ 16.4mm (FOV: 100°~26.2°)
- ½” CMOS sensor with F0.94 Lens (wide)
- Built-in IR with 229’ range or 70m
- Triple codec: H.265, H.264 and MJPEG multiple streaming
- WiseStream II compression technology
- WDR 150dB @30fps, 120dB @60fps
- Loitering, directional detection, fog detection, tampering, Motion detection, object enter or exit an area
- Hallway view, sound classification
- Dual SD cards
- Gyro sensor for digital image stabilization
- IP66/67 NEMA 4X, IK10
- Power: PoE or 12VDC/24VAC
| Video | ||
|---|---|---|
| Imaging Device | 1/2" 2MP CMOS | |
| Effective Pixels | 1945(H)x1097(V) | |
| Min. Illumination | Color: 0.004Lux(F0.94, 1/30sec) BW: 0Lux(F0.94, 1/30sec) |
|
| Video Out | CVBS: 1.0 Vp-p / 75Ω composite, 720x480(N), 720x576(P) for installation USB: Micro USB Type B, 1280x720 for installation |
|
| Lens | ||
| Focal Length (Zoom Ratio) | 4.1~16.4mm(4x) motorized varifocal | |
| Max. Aperture Ratio | F0.94(Wide)~F2.4(Tele) | |
| Angular Field of View | H: 100.0°(Wide)~26.2°(Tele) / V: 54°(Wide)~14.8°(Tele) / D: 116.0°(Wide)~30.0°(Tele) | |
| Min. Object Distance | 0.7m(2.30ft) | |
| Focus Control | Simple focus | |
| Lens Type | DC auto iris | |
| Operational | ||
| IR Viewable Length | 70m(229.66) | |
| Camera Title | Displayed up to 85 characters | |
| Day & Night | Auto(ICR) | |
| Backlight Compensation | BLC, HLC, WDR, SSDR | |
| Wide Dynamic Range | 150dB | |
| Digital Noise Reduction | SSNRⅤ | |
| Digital Image Stabilization | Support | |
| Defog | Support | |
| Motion Detection | 8ea, 8point polygonal zones | |
| Privacy Masking | 32ea, polygonal zones - Color: Grey/Green/Red/Blue/Black/White - Mosaic |
|
| Gain Control | Low / Middle / High | |
| White Balance | ATW / AWC / Manual / Indoor / Outdoor | |
| LDC | Support | |
| Electronic Shutter Speed | Minimum / Maximum / Anti flicker (2~1/12,000sec) | |
| Video Rotation | Flip, Mirror, Hallway view(90˚/270˚) | |
| Analytics | Defocus detection, Directional detection, Fog detection, Face detection, Motion detection, Digital auto tracking, Appear/Disappear, Enter/Exit, Loitering, Tampering, Virtual line, Audio detection, Sound classification | |
| Alarm I/O | Input 1ea / Output 1ea | |
| Alarm Triggers | Analytics, Network disconnect, Alarm input | |
| Alarm Events | File upload via FTP and e-mail Notification via e-mail SD/SDHC/SDXC or NAS recording at event triggers Alarm output DPTZ preset |
|
| Audio In | Selectable(mic in/line in) Supply voltage: 2.5VDC(4mA), Input impedance: 2K Ohm |
|
| Audio Out | Line out, Max.output level: 1Vrms | |
| Network | ||
| Ethernet | RJ-45(10/100BASE-T) | |
| Video Compression | H.265/H.264: Main/Baseline/High, MJPEG | |
| Resolution | 1920x1080, 1280x1024, 1280x960, 1280x720, 1024x768, 800x600, 800x448, 720x576, 720x480, 640x480, 640x360, 320x240 | |
| Max. Framerate | H.265/H.264: Max. 60fps/50fps(60Hz/50Hz) MJPEG: Max. 30fps/25fps(60Hz/50Hz) |
|
| Smart Codec | Manual(5ea area), WiseStreamⅡ | |
| Bitrate Control | H.264/H.265: CBR or VBR MJPEG: VBR |
|
| Streaming | Unicast(20 users) / Multicast Multiple streaming(Up to 10 profiles) |
|
| Audio Compression | G.711 u-law /G.726 Selectable G.726(ADPCM) 8KHz, G.711 8KHz G.726: 16Kbps, 24Kbps, 32Kbps, 40Kbps AAC-LC: 48Kbps at 16KHz |
|
| Protocol | IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP,RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, PIM-SM, UPnP, Bonjour, LLDP, SRTP | |
| Security | HTTPS(SSL) Login Authentication Digest Login Authentication IP Address Filtering User access log 802.1X Authentication(EAP-TLS, EAP-LEAP) |
|
| Edge Storage | Micro SD/SDHC/SDXC 2slot 512GB | |
| Application Programming Interface | ONVIF Profile S/G/T SUNAPI(HTTP API) Wisenet open platform |
|
| Web Viewer | Supported OS: Windows 7, 8.1, 10, Mac OS X 10.10, 10.11, 10.12 Recommended Browser: Google Chrome Supported Browser: MS Explore11, MS Edge, Mozilla Firefox(Window 64bit only), Apple Safari(Mac OS X only) |
|
| Memory | 1024MB RAM, 256MB Flash | |
| Environmental | ||
| Operating Temperature / Humidity | -40°C~+55°C(-40°F ~ +131°F) / Less than 90% RH * Start up should be done at above -35°C |
|
| Storage Temperature / Humidity | -40°C ~ +60°C (-40°F ~ +140°F) / Less than 90% RH | |
| Certification | IP67, IP66, NEMA4X, IK10 | |
| Electrical | ||
| Input Voltage | PoE(IEEE802.3af, Class3), 12VDC, 24VAC | |
| Power Consumption | PoE : Max 12.95W 12VDC : Max. 11.5W 24VAC : Max. 14.5W |
|
| Mechanical | ||
| Color / Material | Dark gray / Aluminum | |
| Product dimensions / weight | Ø91x388.6mm(3.85"x15.3"), 2.35kg(5.18 lb) | |
|
