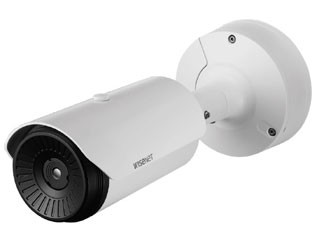

Wisenet Thermal Camera TNO-4040T
RP. 173,470,000
- Max. 640 x 480 resolution support
- Built-in 19mm fixed lens
- H.265, H.264, MJPEG codec
- Max. 30fps@all resolutions (H.265, H.264, MJPEG)
- Motion detection, Handover, Tampering, Loitering
- Directional detection, Audio detection, Shock detection
- SD / SDHC / SDXC memory slot (Max. 256GB)
- Hallway View, WiseStreamII support
- PoE, 24V AC, 12V DC
- IP66, NEMA4X, IK10
| Video | ||
|---|---|---|
| Imaging Device | Uncooled micro bolometer | |
| NETD | ＜50mK | |
| Pixel size | 17㎛ | |
| Video Out | CVBS: 1.0 Vp-p / 75Ω composite, 720x480(N), 720x576(P) for installation USB: Micro USB Type B, 1280x720 for installation |
|
| Lens | ||
| Focal Length (Zoom Ratio) | 19mm fixed focal | |
| Max. Aperture Ratio | F1.0 | |
| Angular Field of View | H: 32° / V: 24.3° / D: 39.2° | |
| Min. Object Distance | 11m(36.09ft) | |
| Focus Control | Fixed | |
| Operational | ||
| Camera Title | Displayed up to 85 characters | |
| Digital Image Stabilization | Support(built-in gyro sensor) | |
| Motion Detection | 8ea, 8point polygonal zones | |
| Privacy Masking | 32ea, polygonal zones - Color: Grey/Green/Red/Blue/Black/White - Mosaic |
|
| Video Rotation | Flip, Mirror, Hallway view(90˚/270˚) | |
| Analytics | Directional detection, Motion detection, Appear/Disappear, Enter/Exit, Loitering, Tampering, Virtual line, Audio detection, Temperature ditection, Sound classification, Shock detection | |
| Alarm I/O | Input 1ea / Output 2ea | |
| Alarm Triggers | Analytics, Network disconnect, Alarm input | |
| Alarm Events | File upload via FTP and e-mail Notification via e-mail SD/SDHC/SDXC or NAS recording at event triggers Alarm output Handover |
|
| Audio In | Selectable(mic in/line in) Supply voltage: 2.5VDC(4mA), Input impedance: 2K Ohm |
|
| Audio Out | Line out, Max.output level: 1Vrms | |
| Color Palettes | Whitehot, Blackhot, Rainbow, Sepia, Red, Iron, Wisenet | |
| Network | ||
| Ethernet | RJ-45(10/100BASE-T) | |
| Video Compression | H.265/H.264: Main/Baseline/High, MJPEG | |
| Resolution | 640x480, 640x360, 320x240 | |
| Max. Framerate | H.265/H.264: Max. 30fps/25fps(60Hz/50Hz) MJPEG: Max. 30fps/25fps(60Hz/50Hz) |
|
| Smart Codec | Manual(5ea area), WiseStreamⅡ | |
| Bitrate Control | H.264/H.265: CBR or VBR MJPEG: VBR |
|
| Streaming | Unicast(20 users) / Multicast Multiple streaming(Up to 10 profiles) |
|
| Audio Compression | G.711 u-law /G.726 Selectable G.726(ADPCM) 8KHz, G.711 8KHz G.726: 16Kbps, 24Kbps, 32Kbps, 40Kbps AAC-LC: 48Kbps at 16KHz |
|
| Protocol | IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP,RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, PIM-SM, UPnP, Bonjour, LLDP, SRTP | |
| Security | HTTPS(SSL) Login Authentication Digest Login Authentication IP Address Filtering User access log 802.1X Authentication(EAP-TLS, EAP-LEAP) |
|
| Edge Storage | Micro SD/SDHC/SDXC 1slot 256GB | |
| Application Programming Interface | ONVIF Profile S/G/T SUNAPI(HTTP API) Wisenet open platform |
|
| Web Viewer | Supported OS: Windows 7, 8.1, 10, Mac OS X 10.10, 10.11, 10.12 Recommended Browser: Google Chrome Supported Browser: MS Explore11, MS Edge, Mozilla Firefox(Window 64bit only), Apple Safari(Mac OS X only) |
|
| Memory | 1024MB RAM, 256MB Flash | |
| Environmental | ||
| Operating Temperature / Humidity | -40°C ~ +60°C (-40°F ~ +140°F) / 90% RH 이하 | |
| Storage Temperature / Humidity | -50°C ~ +60°C (-58°F ~ +140°F) / 90% RH 이하 | |
| Certification | IP66, IK10, NEMA4X | |
| Electrical | ||
| Input Voltage | PoE(IEEE802.3af, Class3), 24VAC, 12VDC | |
| Power Consumption | PoE: Max. 10W, typical 8.6W 12VDC: Max. 9W, typical 7.5W 24VAC: Max. 10.5W, typical 8.9W |
|
|
